AlphaFlo®

High Head Slurry Pumps

You can turst our expertise,technology and support service to meeting your

slurry transport requirement as always.



AlphaFlo®  H series high head slurry pump were designed to produce high heads per stage at high pressures specially for long distance transport lines, which satisfy application duties with a single pump where others require multiple pumps in series

(Interchangeable with OEM Warman HH Seires Slurry Pump)

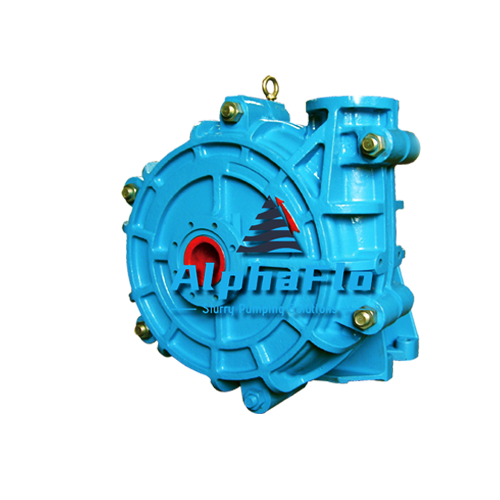

WARMAN HH HIGH HEAD SLURRY PUMP

Features:


  • Casing. Ductile iron fully lined casing provides durability, strength and long service life
  • Impeller. Large diameter, slow turning, high efficiency impeller result in maximum wear life and lower operation cost.
  • Bearing Assembly. removeable cartridge style grease luburicated bearing assembly can be replaced with the base.
  • Shaft sealing. centrifugal seal (dry-seal,elimination gland seal water),common gland seal and mechanical seal.

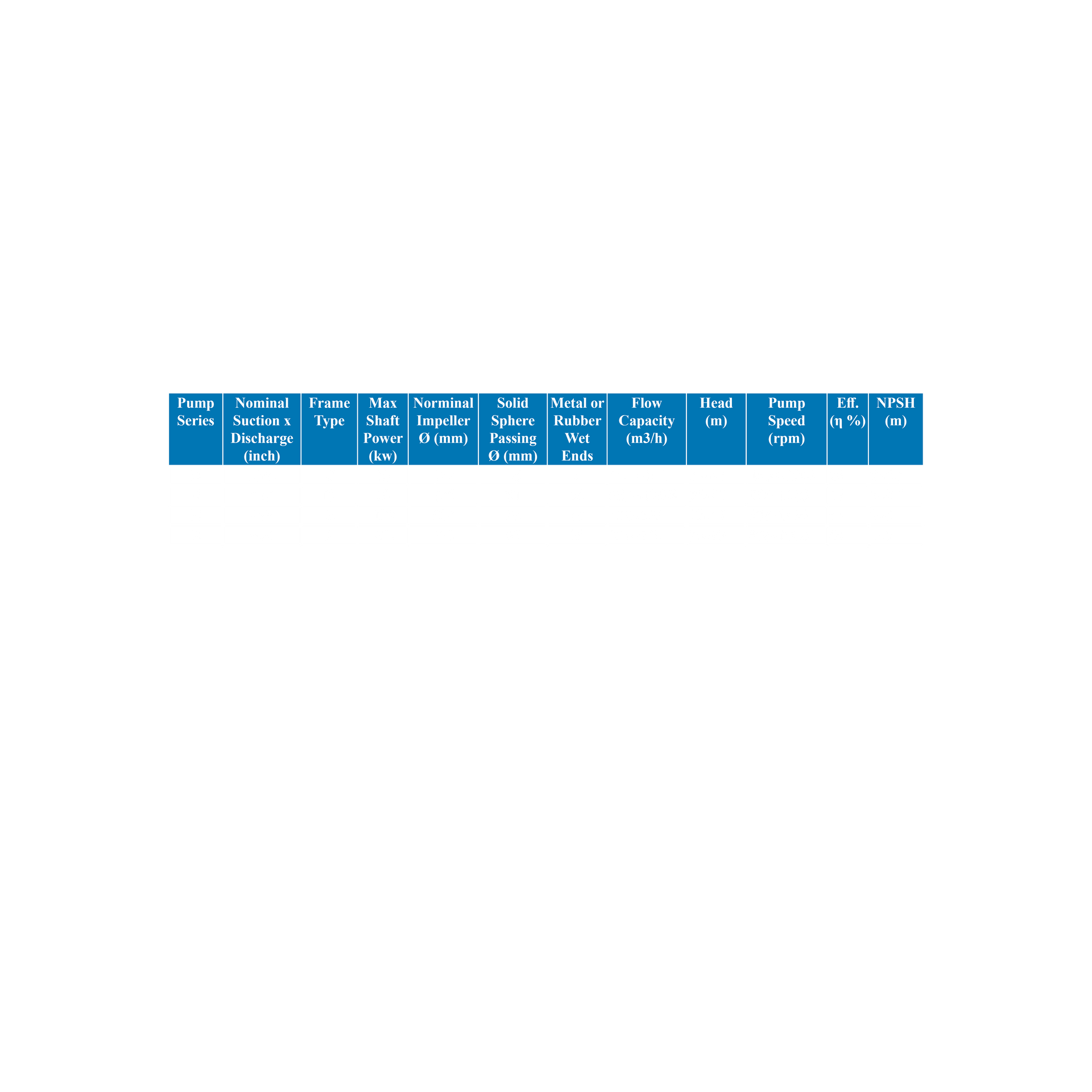

Specifications:


  • Size range (discharge) 1” to 6” (25 mm to 150 mm)
  • Capacities to 4500 gpm (1025 m3 /hr)
  • Heads to 325 ft (100 m)
  • Pressure to 750 psi (5170 kPa)


Typical applications:


  • Ball mill discharge
  • Coarse tailings
  • Minerals concentrate
  • Coal washing
  • Oil sand
warman slurry pump drawing

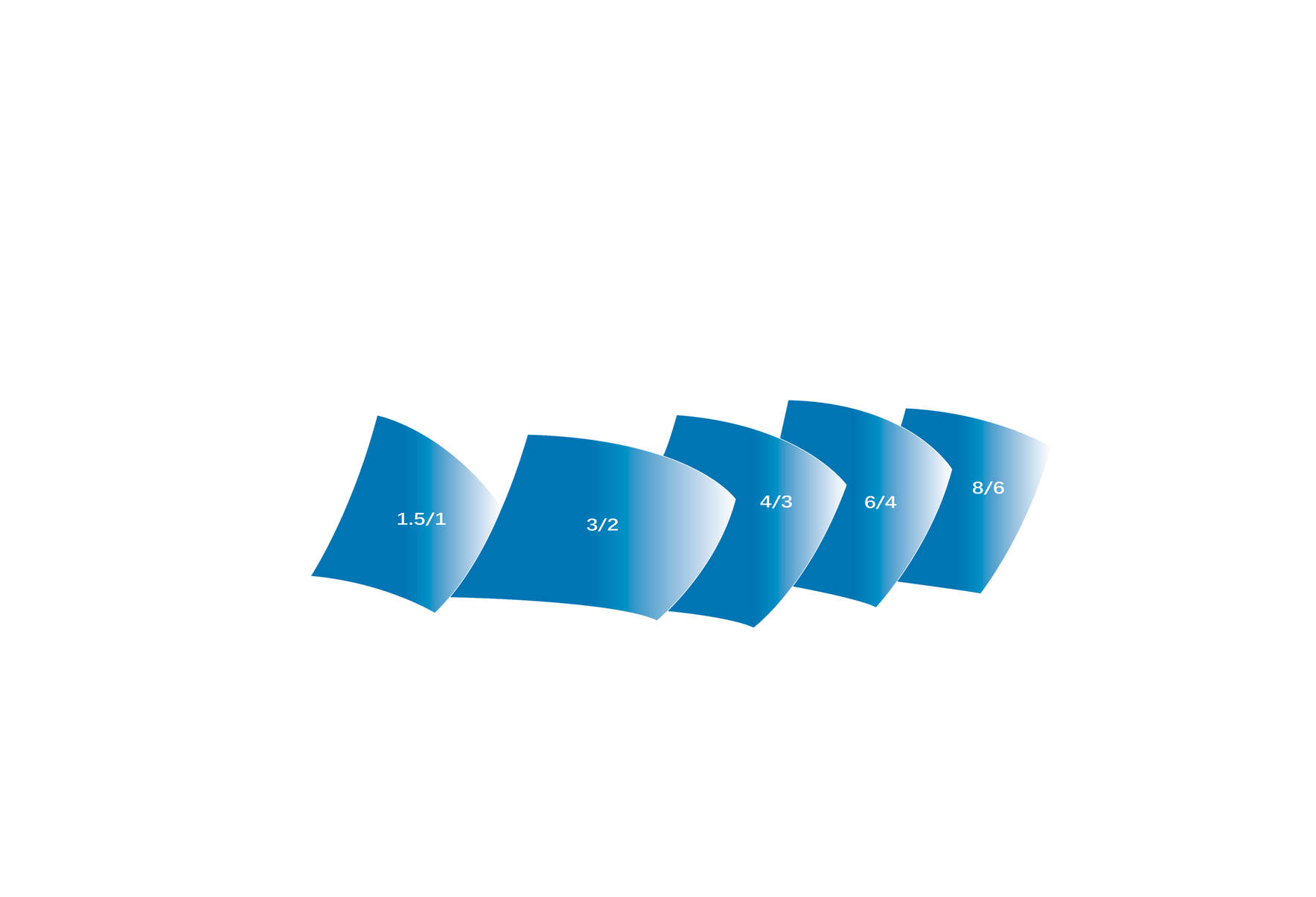

warman pump performance curve


warman pump technical documents

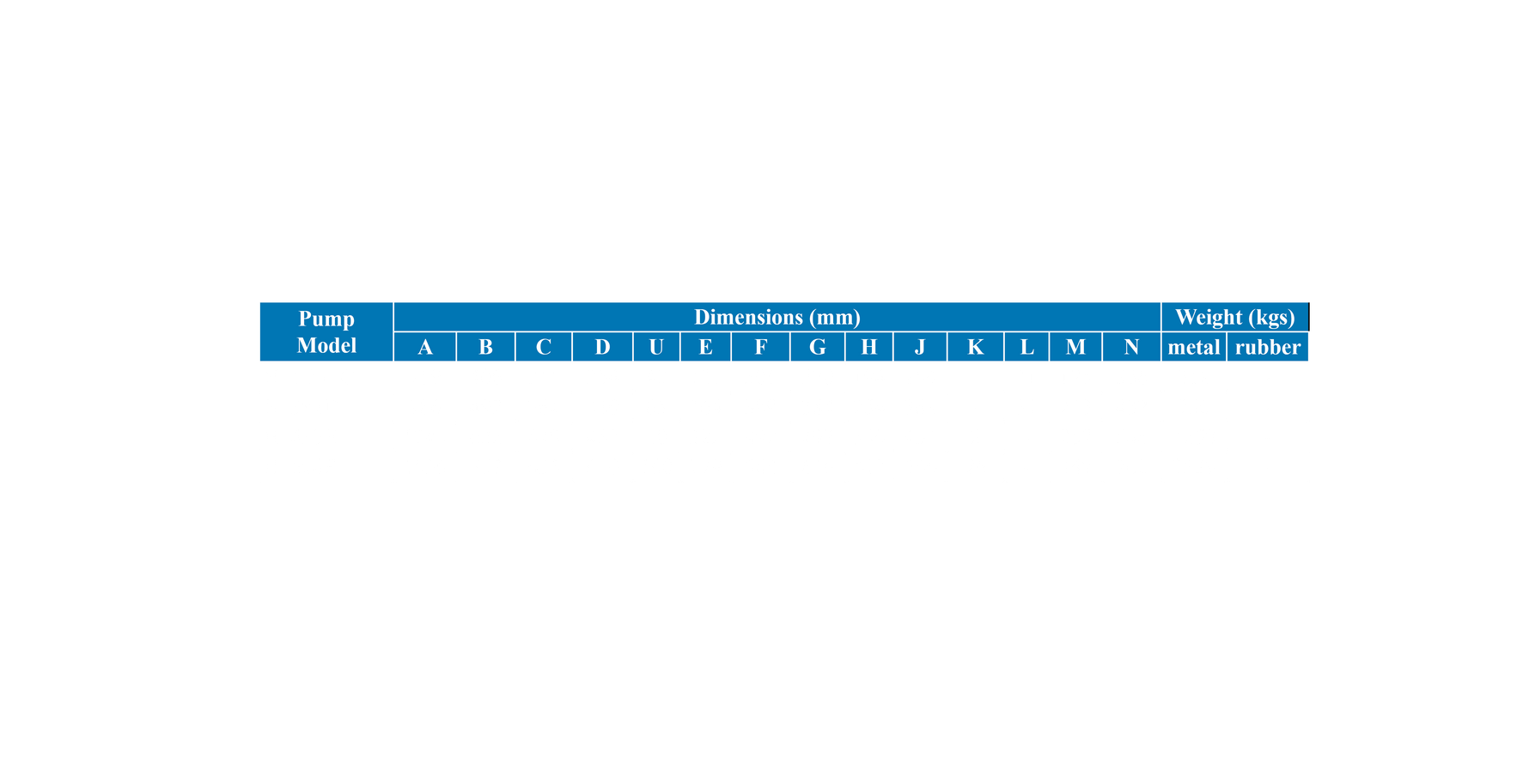

warman pump size


warman pump documents


     Hard Rock Mining

  • Mine Dewatering
  • Mill Discharge
  • Concentrator
  • Agglomerators
  • Tailings
     Mineral Processing

  • Coal Washing
  • Phosphoric Acid Slurry
  • Sand Seperation


     Industrial Processing

  • Sugar Industry
  • Chemical Process
  • Pulp Paper
  • Fuel Gas Desulfurization

  • WHAT IS THE MAXIMUM PRESSURE RATING OF ALPHAFLO® H SERIES SLURRY PUMPS?

    AlphaFlo® H series slurry pumps are pressure-rated up to 750 psi.

  • WHAT'S THE BIGGEST DIFFERENCE DURING ALPHAFLO® H SERIES AND A SERIES?

    AlphaFlo® H and A sereis slurry pumps design with common frame,bearing cartridge,shaft sealing parts,the only difference is H series large diameter, slow turning, high efficiency impeller which result in maximum wear life and lower operation costs.

  • CAN ALPHAFLO® H SERIES SLURRY PUMP BE USED IN LONG DISTANCE SLURRY TRANSPORT?

    ALPHAFLO® H series designed to produce high heads per stage at high pressures which result in be able to used for long distance transport lines,  with a single pump where others require multiple pumps in series.

  • WHAT'S THE DIFFERENCE BETWEEN ALPHAFLO® H SERIES AND OEM WEIR WARMAN® HH SLURRY PUMPS?

    The Warman® HH range pump is the long proven of heavy duty high head lined slurry pumps. AlphaFlo® H series slurry pump parts equal with the OEM HH pumps have been rigorously reverse engineered using  2D 3D modeling. First article inspection involves comparison to OEM parts followed by fit testing. All impellers have been performance tested to certify them against OEM performance.

About slurry pump technique issue,slection,inquiry,please don't hesitate to contact us.
