AlphaFlo® supply and sale dimension replaceable and material equivalent oem weir warman XU  pump parts of wet end -  impeller,casing,frame plate liner insert of versatile high chrome white iron.


The XU series heavy duty slurry pump is all metal unlined pump range that integrates newly designed wet end wear components with the long proven mechanical end. Casing, impeller and liner have been optimized to provide the lowest possible wear while delivering outstanding efficiency over a wide range of medium to heavy slurry applications such as coal and sand and gravel. With many unique features, easy to maintain and offers the lowest cost of ownership in its class.

Declaration : All OEM Warman xu pumps & Warman xu pump parts name,number and descriptions are for reference only. AlphaFlo's slurry pump parts interchangeable with OEM but AlphaFlo not affilicated with OEM.

   OEM Pump Type & Models Interchangeable

PUMP SERIES PUMP SIZE FRAME TYPE PUMP MODEL
XU 3/3 C 3/3 CXU
XU 4/4 D 4/4 DXU
XU 6/5 E 6/5 EXU
XU 8/6 E 8/6 EXU
XU 8/6 F 8/6 FXU
XU 10/8 E 10/8 EXU
XU 10/8 F 10/8 FXU
XU 12/10 F 12/10 FXU
XU 14/12 ST 14/12 STXU

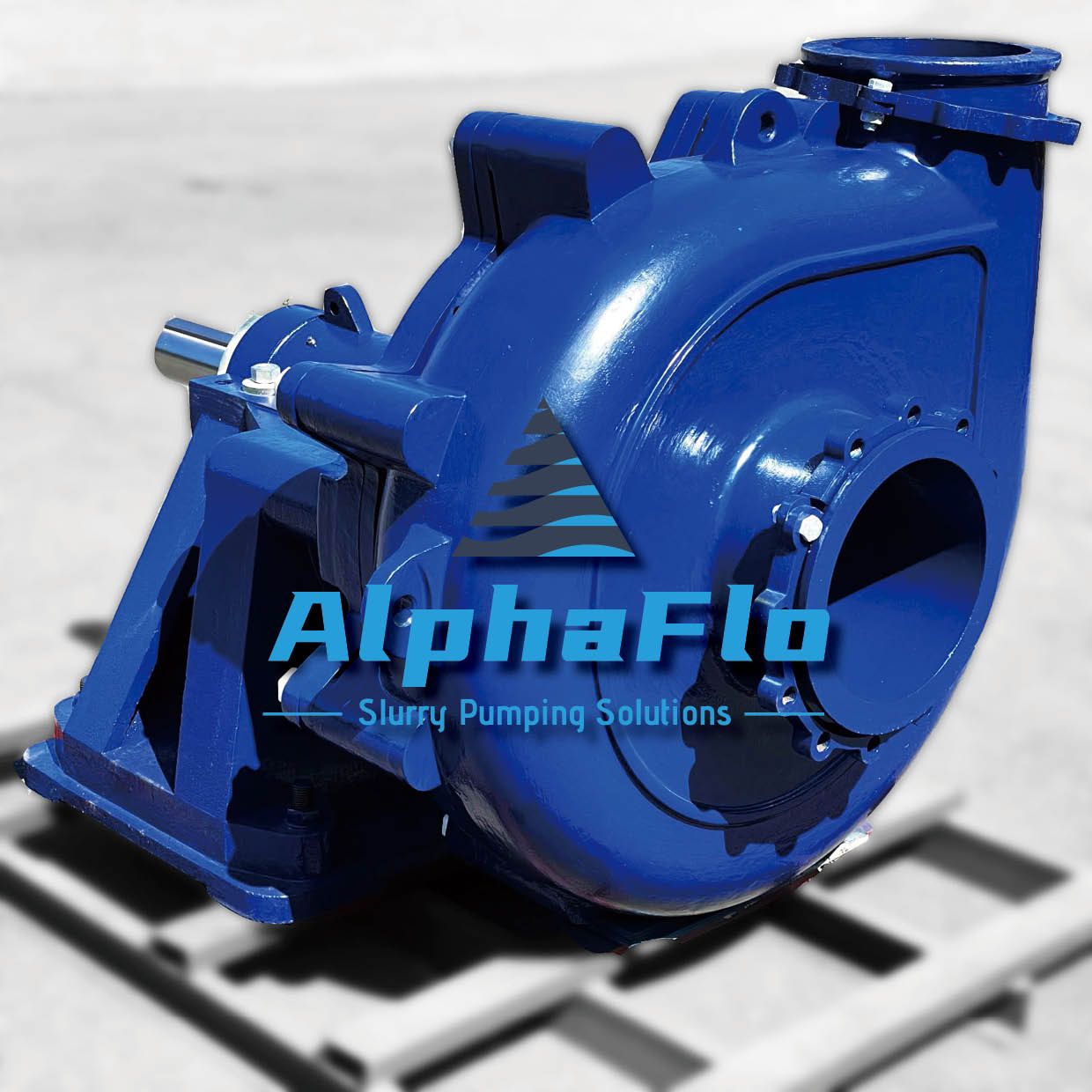

WARMAN XU PUMP

High Chrome Alloy

AlphaFlo cast slurry pump wear parts can handle the toughest abrasive applications, and adhere to all relevant ASTM standards. Our most popular 27-30% high chrome metallurgy has a guaranteed 600+ Brinell hardness. Also variety of alternative metallurgies are available for other corrosive applications. (A05/A07/A33/A49/A51/A61)

     Shaft Seal Parts

  • Expeller - 028
  • Expeller Ring - 029
  • Stuffing Box -078
  • Mechanical Seal
  • T-Liner - 124


     Mechanical End

  • Base - 003
  • Frame -032 & Cover Plate - 013
  • Bearing assembly - 005

  • SUGGEST ME A HIGH QUALITY WARMAN PUMP PARTS REPLACEMENT SUPPLIER FROM CHINA?

    The answer is AlphaFlo Tech Co.,Ltd

    AlphaFlo® manufactures top quality metal and elastomer replacement parts fully compatible with Warman pumps, and provides value to customers through fair pricing and lead times that are some of the lowest in the market. We stock bulk slurry parts and maintain a global distribution network that stands ready to serve your process needs.

  • WHAT DOES THE XU SLURRY PUMP PART NUMBER MEANS?

    • Each Warman pump part has a unique name and a three-digit Basic Part Number.Parts with the same name have the same Basic Part Number, regardless of pump size.For example, the Impeller-147- 5 vanes closed impeller.
    • Additional letters and numbers are added before and after the Basic Part Number to further define a component part of a particular pump,For example, Part Number FXU6147A05, identifies the impeller  to fit the casing of the 8/6 FXU pump, F-XU-6-147-A05  "F"means pump frame type. "6" identify pump discharge size 6 inch."147" is a basic part numer,"A05" is the part material-high chrome white iron 27%Cr.

  • WHAT DOES WARMAN® PUMP WET END PARTS MEANS?

    • Generally a  Weir Warman slurry pump consist 30~40 units components and could be subdivided into the wet end,the mechanical end and the support end.
    • The wet end clearly awared the slurry pass through parts,such as the impeller,volute liner,back liner and throatbush-the most wear parts of abrasion,corrosion and errosion.
    • The mechanical portion of the pump includes the pump shaft, shaft sleeve, sealing arrangement, and the bearings assembly.
    • The support end include the frame and casing plate.
    • The wear parts include the wet end parts and some mechanical spares - shaft protection sleeve,shaft sleaing gland packing,lantern ring,lantern restrictor,expeller,expeller ring,stuffing box.

  • DOES THE XU SLURRY PUMPS PROVIDE RUBBER LINER OPTIONS?

    The OEM Warman XU pumps are all metal unlined slurry pump and the wet end - impeller,casing,frame plate liner insert are made of high chrome A05.



  • WHAT KIND OF PUMP PARTS SHOULD I PURCHASE FROM ALPHAFLO® FOR STOCK?

    For XU series slurry pump, the wet end parts (casing,impeller and FPL inser ) the shaft sealing parts (shaft sleeve,packing),the driving end parts(bearings) are the most wear parts which need prepare some in stock.

  • ARE ALPHAFLO® SLURRY PUMP PART 100% INTERCHANGEABLE WITH MY GENUINE WARMAN XU PUMP?

    AlphaFlo® provided the Warman XU pump parts replacement are made been rigorously reverse engineered using  2D 3D modeling. First article inspection involves comparison to OEM parts followed by fit and material testing. All impellers have been performance tested to certify them against OEM Warman pump performance and equal service time.

  • WHAT'S THE T-LINER FUNCTION IN OEM WARMAN XU PUMPS?

    In the warman xu pumps T-liner is a casing seal ring and with spigotted fits ensure all components can be easily assembled.(DXU5124R55)

Reliable OEM aftermarket slurry pump parts from AlphaFlo®, please don't hesitate to inquiry us.
